AI-Ready Radar
Configurable platform
for data-driven solutions
Novensyx provides a highly differentiated core technology while vertical specialists own the application domain, certifications, integration and customer relationships.
For Industrial Partners
Novensyx provides a highly differentiated core technology while vertical specialists own the application domain, certifications, integration, and customer relationships.
Fast-Track for specialized radar deployment, all the heavy-weight lift duty is done and under control.
Construction
Ground Penetrating Radar
- Civil-engineering companies
- Infrastructure inspection integrators
- Utility mapping service providers
Maritime
Infrastructure radar
- Maritime surveillance companies
- Port security integrators
- Coastal monitoring specialists
Defence
Tactical radar-bands
- Electronic warfare companies
- Counter-UAS specialists
- Intelligence and reconnaissance providers
Application

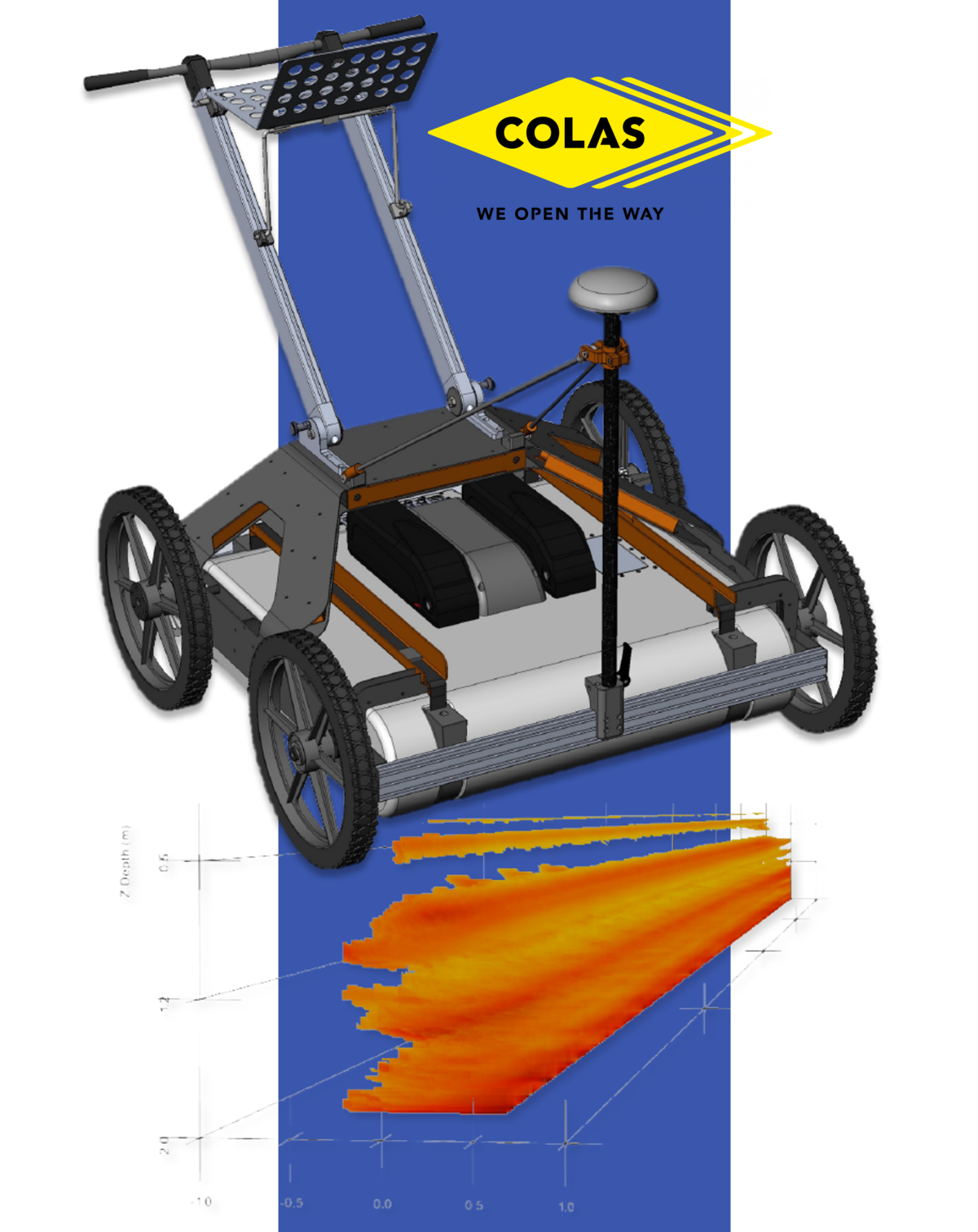

GROUND PENETRATING RADAR (GPR)
The famous road construction world leader Colas uses STRYX for his GPR.
This revolutionary new GPR allows for minimally trained users to seek for buried networks prior to digging.
Driving factors related to unreliable undergroud mapping :
- Damage to undeground networks may cause unacceptable casualties
- Increased excavation regulations: "Call-before-you-dig" requirements
- Strong cost-benefit ratio with accurate underground mapping
Based on CEA-LETI research results
NOVENSYX’ OFFER
Novensyx has built a configurable radar platform and operating stack.
We are looking for OEM and systems partners that can industrialize a complete radar-enabled product.
Novensyx offers:
- Hardware
- Licensed algorithms
- Application-specific hardware/firmware customization
WHY IT IS IMPORTANT
AI-Ready with uncompromised data and full control over the heart of the system.
SOVEREIGNTY INDEPENDENCE
FUTURE-PROOF
FAST
TIME-TO-MARKET

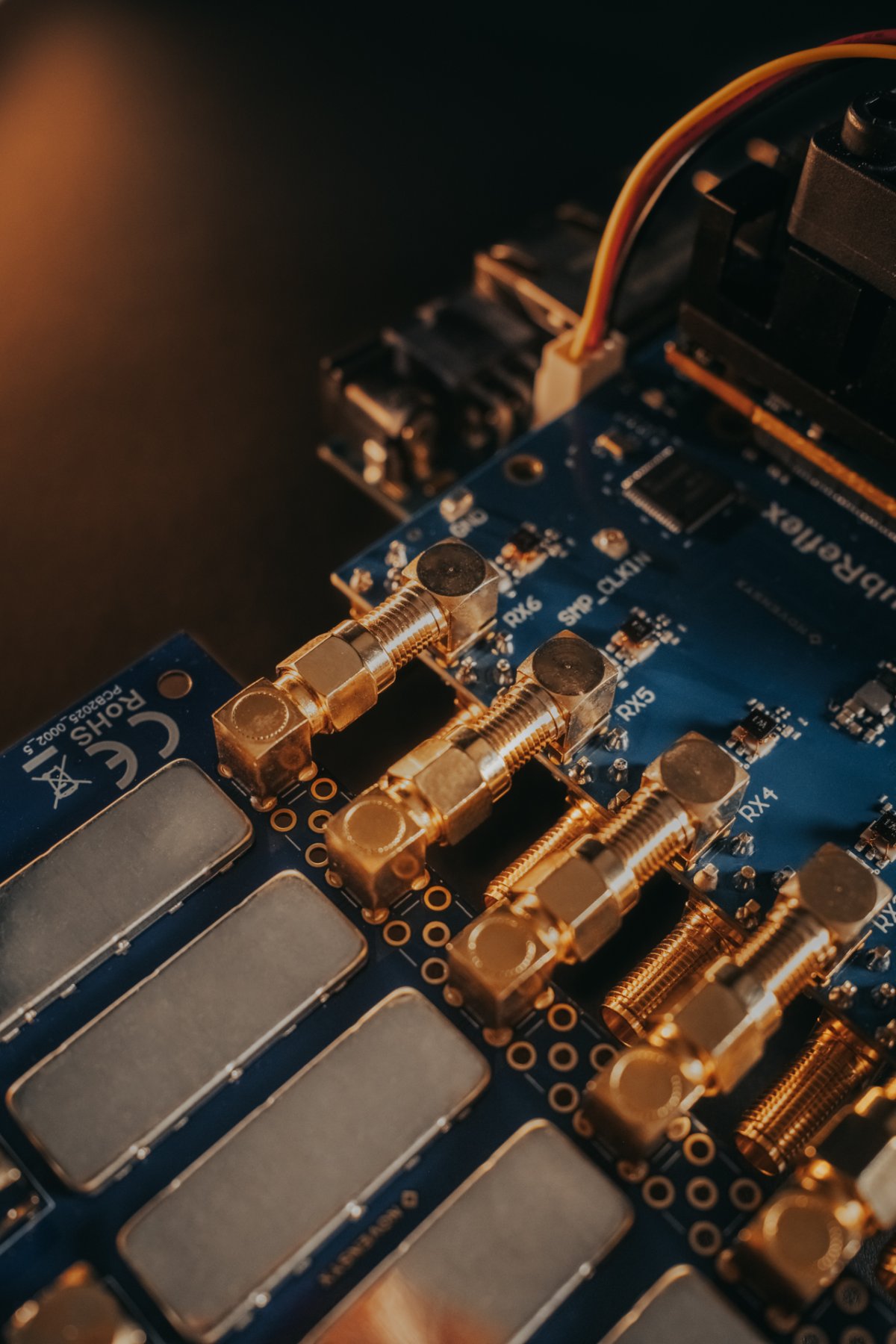

TRANSCEIVER RF MULTI-CHANNEL
6 CHANNELS differentials
- SDR Direct conversion ADC / DAC 14 bits 5.9GHz
- OFDM Generation of configurable OFDM sequence
- (UWB) Wide range of RF spectrum available
- MIMO Command channel sequencing
- MTS Multi-channel phase coherent synchronisation
- Coherent Rx accumulation
- Transfer DMA towards DDR via AXI4
Based on Xilinx Zynq UltraScale+ (RFSoC Gen3/DFE) | Inspired from CEA-LETI research results
SDR STRUCTURE
Software Defined Radar
- Multi-mission configurability
- Wide spread of spectrum, takes advantage of all propagation characteristics
- Secured TCP interface on API allows:
Custom application
C2 Interfacing

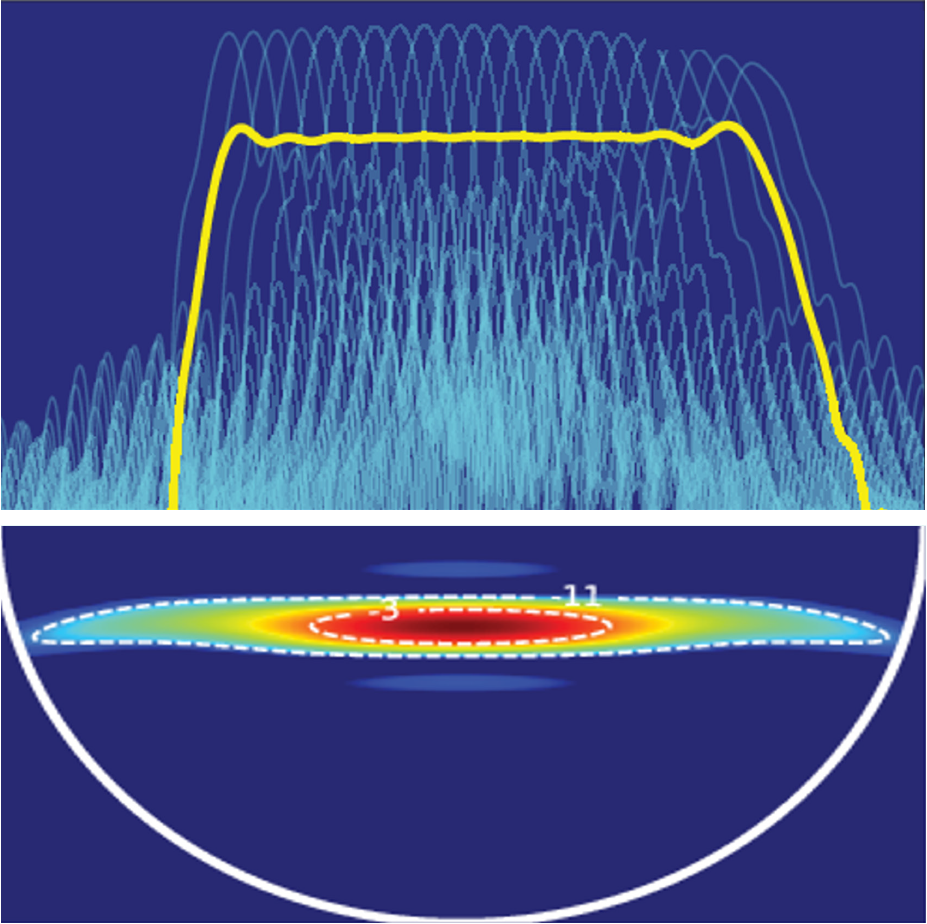

AGILE WIDE-BAND OFDM
Wide-band multi-carrier modulation
Fine resolution, distance and angle
Noise and interferences resilience
Stealth RF signature
Convergence JCAS (Joint Communication & Sensing)
Coexistence with existing telecom networks

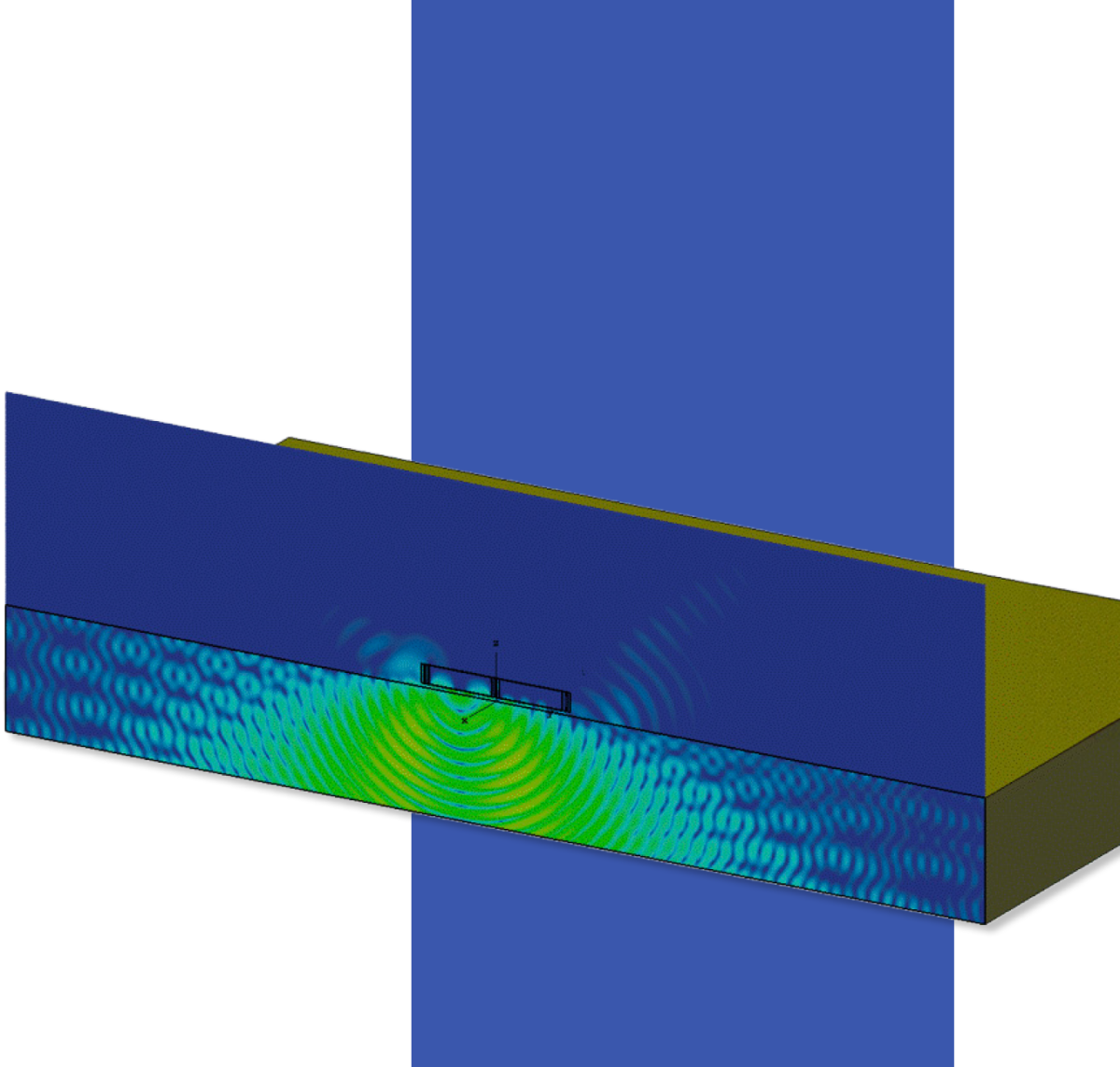

MIMO ARCHITECTURE
Transmit / Receive antenna driver
Dynamic beamforming
Precise angular resolution
Fine object separation
Paramount for quality 3D imagery
